Analyzing call data

mCommons keeps a record of all of the calls your users make as part of an mConnect campaign, no matter how they dial in to your campaign: via text-to-call in response to an SMS broadcast, direct call-in to your VoIP number, or click-to-call web form.

To open the Calls table:

Select Phone Calls in the left pane, and then select Calls.

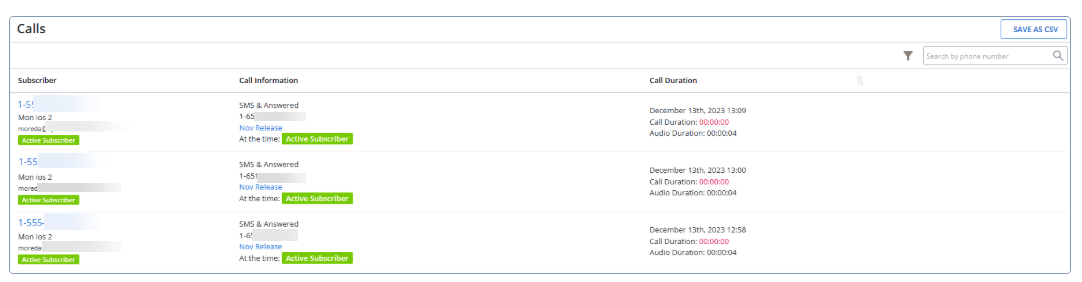

The Calls table displays call data by subscriber, based on their profile information, including subscriber name and call duration. If a caller is a new subscriber, a new profile is created for their mobile phone number.

If the table is longer than one page, use the page-navigation options on the lower-right to select the number of rows per page and to navigate to the next or previous page.

Tip: To navigate directly to a specific page, select the page field, enter the page number, and then press ENTER.

Tip: To sort the table by time of call, select the sorting arrows on the right-hand side of the column header:

By default, the calls are sorted from most recent to earliest. Selecting the arrows for the first time will reverse this order and sort the calls from earliest to most recent. Selecting the arrows again will return to the original sorting of most recent to earliest.

From the Calls table:

Search the Calls table

Filter call data
Export subscriber call data
Export mConnect data

Searching the Calls table

To search by phone number:

Select Phone Calls in the left pane, and then select Calls.
Above the Calls table, on the right, enter a mobile phone number in the Search box, and then select Search.

The Calls table displays the subscriber calls that match the search term.

Filtering call data

Tip: Any sorting that has been applied to the table will remain on the page after a filter is added.

To filter the Calls table:

Select Phone Calls in the left pane, and then select Calls.
Above the Profiles table, on the right, select Filter.

From the Filters pane on the right, select one option from one or more filters.

You can filter the subscriber data in the Calls table by the following criteria:

Filter	Filter options	Description
Phone type	All	All calls made by all phones, whether a mobile phone or not.
	Not a mobile phone	Calls made by landlines or other device that is not a mobile phone.
	Mobile phones	Calls made by mobile phone.
Source	All	All calls originating from all sources: VoIP, text, and web form.
	Dialed	Calls made by directly dialing a VoIP number.
	Texted	Calls made by replying to a text message broadcast.
	Web form	Calls made by filling out a click-to-call form on the web.
Profiles	All profiles	All profiles for mobile devices used to call in to your campaign. Note: If a caller is a new subscriber, a new profile is created for their mobile phone number.
	Subscribers	Calls made by active subscribers to your mobile campaigns.
	Non-subscribers	Calls made from mobile devices that are not subscribed to any campaigns (for example, a non-subscriber sees the VoIP number on a Facebook page and calls in, but does not choose to join the mobile list and become an active subscriber).
	Opted out	Calls made by subscribers who have since chosen to opt out.
Status	Any status	Any call that was made.
	Reached destination	The call reached the final destination number, but the call was not completed, perhaps because caller hung up or no one answered the call.
	Connected to destination	The call was connected to the final destination number.
	Ended before destination	The caller hung up or was disconnected before the call reached the final destination.
Errors	No errors	There were no errors on the call.
	Any error	There an unspecified error on the call.
	Failed connecting to user	There was an error when attempting to connect to the caller’s phone, perhaps because the caller did not answer the call from the VoIP number.
	Voicemail	The caller was sent to voicemail, perhaps because the call was set to route to voicemail or because the caller did not reach the destination number and was sent to voicemail as failover.
	Could not reach destination	There was an error reaching the final destination number.
Date	Last 30 days (default)	Calls made during the last 30 days, including today.
	Any time	Calls made at any time.
	This week	Calls made during the last 7 days.
	Last week	Calls made during the previous 7 days.
	This month	Calls made during the current calendar month.
	Last month	Calls made during the previous calendar month.
	This year	Calls made during the current year.
	Last year	Calls made during the previous year.
	Custom range	Calls made during the date range you select: Select the Start Date field and then select a date from the calendar or select Today. Select the End Date field and then select a date from the calendar or select Today.

When you are done, select Apply in the lower-right corner.

The Calls table displays only those records that match the selected filter(s). The filter indicator above the table displays the number of filters that have been applied. Hover your cursor over the filter indicator to display a list of applied filters.

Exporting subscriber call data

You can export all subscriber calls or a filtered list of subscriber calls to a CSV (comma-separated values) file.

To export subscriber call data:

Select Phone Calls in the left pane, and then select Calls.

The Calls table displays call data by subscriber, based on their profile information.
Arrange the Calls table to display the records to export. For more information, see Searching the Calls table and Filtering call data.

Above the Calls table, on the right, select Save as CSV.

The contents of the Calls table, filtered or all data, plus the callers' profile data, are saved in a CSV file containing the following columns:

Column	Description
start_time	Time when the call started.
end_time	Time when the call ended.
duration	Number of minutes for the call.
call_status	The call status: Answered Completed In progress Voicemail
connection_source	The type of connection: Dial: Calls made by directly dialing a VoIP number. SMS: Calls made by replying to a text message broadcast. Web: Calls made by filling out a click-to-call form on the web.
origin_description	Description of the origin source, if available.
profile_status_at_call_time	Status of caller's profile: Active subscriber Profiles with no subscriptions Undeliverable
handset_number	The caller's mobile phone number.
voip_number	The VoIP number used to make the phone call.
destination_number	The phone number that was called.
legislator_first_name	The legislator's first name.
legislator_last_name	The legislator's last name.
legislator_party	The legislator's party affiliation.
legislator_district	The district represented by the legislator.
legislator_state	The state represented by the legislator.
transcription	The text version of the caller's voicemail message.
voicemail_duration	The duration of the voicemail message left by the caller (in seconds).
voicemail	The URL for the voicemail recording file.
mconnect	The name of the mConnect campaign.

For more information on the profile fields, see Exporting profile records.

To download the CSV file, select Home in the left pane, and then select Reports.
Locate the CSV file in the Exports table and then select the link in the Name column.

Exporting mConnect data

You can export active and inactive mConnect records in the mConnects tables to a CSV (comma-separated values) file.

To export mConnect data:

Select Phone Calls in the left pane, and then select mConnects.
Select the Active mConnects or Inactive mConnects tab.
Above the mConnects or Inactive mConnects table, select Actions and then select Save as CSV.

The contents of the Active or Inactive mConnects table are downloaded in a CSV file containing the following columns:

Column	Description
id	The downloaded records are sorted by the unique ID for the mConnect.
name	The name of the campaign.
destination_number	The telephone number called.
destination_description	The description of the destination for the call.
voip_number	The VoIP number used for the call, if any.
audio	The name of the audio recording used to answer calls, if any.
destination	The destination for the call, including the legislator, voicemail, and audio only.
activated_at	The date and time with the mConnect was activated.
created_at	The date and time with the mConnect was created.
updated_at	The date and time with the mConnect was last updated.
failover_number	Failover number in case the destination number is not answered.
voicemail	True/False, indicating whether callers can leave a message on voicemail.
transcribe	True/False, indicating whether voicemail messages will be transcribed to text.
phonebook	Name of the phonebook used, if any.
crm_alert_id	For data syncs with a CRM system, maps to an existing call campaign.
language	Language used for the audio recording, usually English or Spanish.
calls	Number of calls made by subscribers for the campaign.
total_duration	Total number of minutes for calls made.
Tags	Name of tags added to organize the mConnect campaign data.

To download the CSV file, select Home in the left pane, and then select Reports.
Locate the CSV file in the Exports table, select the link in the Name column, and then open the downloaded file.
